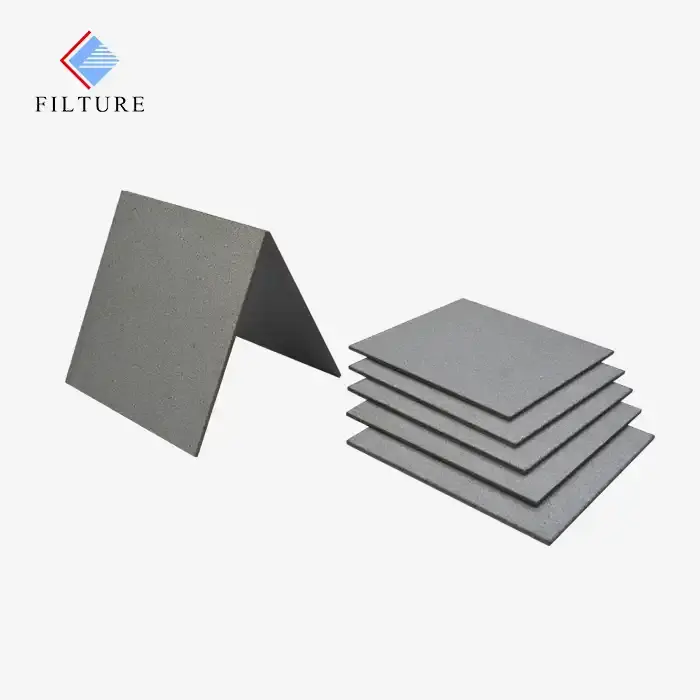

metal sintered filter plate

Product Introduction​​​​​​​

The Metal Sintered Filter Plate is a high-precision filtration material, designed to deliver exceptional mechanical strength, chemical resistance, and operational stability in demanding industrial and energy applications. Manufactured using advanced powder metallurgy techniques, the plate is produced by blending spherical and irregular metal or alloy powders, compacting them under controlled high pressure, and sintering at elevated temperatures. This process generates a densely interconnected porous network with uniform pore distribution, providing precise control over filtration efficiency and consistent performance across the entire surface. The pore sizes range from 0.22 μm to 100 μm, and both length and width are fully customizable, allowing integration into specialized filtration systems.

Constructed from titanium or stainless steel, the sintered plate exhibits superior pressure tolerance and thermal stability, enabling reliable operation under high-load and extreme temperature conditions. Its sintered microstructure ensures dimensional stability and prevents particle shedding, which is critical for applications requiring contaminant-free filtration. The plate also maintains low differential pressure while supporting high flow rates, optimizing system efficiency and reducing energy consumption.

Chemically, the Metal Sintered Filter Plate offers outstanding resistance to acids, alkalis, and oxidizing agents, making it suitable for aggressive and corrosive environments. Its biocompatible surface and antimicrobial properties prevent microbial contamination, meeting the stringent standards of food, pharmaceutical, and clean-energy industries. The stable inter-pore spacing and uniform porosity enhance separation precision, ensuring predictable filtration performance and longevity.

The Metal Sintered Filter Plate is widely employed in nuclear and chemical industry applications for radioactive particle filtration, PEM water electrolysis as durable anode materials, and fuel and air purification in aerospace and automotive systems. By combining precise pore control, mechanical durability, chemical resistance, and thermal stability, these plates provide reliable, long-lasting performance for high-demand filtration and separation tasks, supporting operational efficiency, safety, and sustainability in advanced industrial processes.

Technical Specifications

Parameter	Specification
Material Options	Stainless Steel 316L, Titanium, Inconel
Pore Size Range	0.22 - 100 microns
Operating Temperature	-200°C to 600°C
Pressure Rating	Up to 250 bar
Thickness	1mm - 10mm
Standard Dimensions	Customizable up to 1000mm × 1000mm
Porosity	25% - 50%
Surface Finish	Ra ≤ 1.6μm

Product Features

Our sintered metal channel plates offer momentous focal points for mechanical filtration:

Uniform Pore Structure: Accurately controlled pore dispersion guarantees reliable filtration execution and unsurprising stream characteristics.

Superior Strength: Withstands extraordinary temperatures, chemical introduction, and mechanical stretch without degradation.

Cleanable Plan: Simple discharge and recovery capabilities expand benefit life and decrease working costs.

Chemical Resistance: Amazing compatibility with forceful chemicals, acids, and antacid solutions.

High Stream Rates: Optimized pore geometry maximizes throughput whereas keeping up filtration efficiency.

Applications

Energy Sector

• Fuel cell gas dissemination layers
• Hydrogen generation equipment
• Battery fabricating processes

Chemical Processing

• Catalyst recuperation systems
• Solvent filtration
• Corrosive liquid handling

Pharmaceutical Industry

• Sterile filtration applications
• API purification
• Bioprocess equipment

Aerospace & Defense

• Hydraulic system filtration
• Fuel processing
• Environmental control systems

Manufacturing Process

Our progressed powder metallurgy prepare guarantees predominant quality:

1. Powder Choice: High-purity metal powders are carefully chosen and analyzed
2. Blending: Exact blending makes uniform molecule distribution
3. Compaction: Controlled squeezing shapes the craved shape and density
4. Sintering: High-temperature treatment bonds particles whereas keeping up porosity
5. Quality Testing: Comprehensive assessment confirms all specifications

Customization Options

We get it each application has one of a kind requirements:

• Custom Measurements: Any estimate inside our fabricating capabilities
• Specific Pore Sizes: Custom-made to your correct filtration needs
• Material Choice: Select from different amalgams and compositions
• Surface Medicines: Uncommon coatings for improved performance
• Edge Wrapping up: Welded, machined, or fixed edges available

Quality Assurance

Quality drives everything we do. Our manufacturing partners maintain ISO certification and follow strict quality protocols. Every metal sintered filter plate undergoes comprehensive testing including:

• Pore size distribution analysis
• Bubble point testing
• Flow rate verification
• Material composition validation
• Dimensional inspection

Packaging and Logistics

We guarantee your items arrive securely and on time:

• Protective Bundling: Custom froth embeds anticipate harm amid transit
• Global Shipping: Dependable coordinations accomplices worldwide
• Documentation: Total certificates and test reports included
• Tracking: Real-time shipment checking available

Customer Support

Our technical team provides comprehensive support throughout your project:

• Application Counseling: Master direction for ideal item selection
• Technical Documentation: Point by point determinations and establishment guides
• After-Sales Benefit: Continuous bolster for upkeep and troubleshooting
• Training Programs: Gear operation and support preparing available

Why Choose Us

Shaanxi Filture stands out in the competitive filtration market:

Proven Mastery: A long time of encounter serving requesting businesses over Europe and North America

Advanced Innovation: State-of-the-art fabricating forms guarantee steady quality

Global Reach: Effective executions in the Joined together States, Joined together Kingdom, and Denmark

Innovation Center: Persistent advancement of unused materials and fabricating techniques

OEM Services

Partner with us for comprehensive OEM solutions:

• Product Improvement: Collaborative plan for your particular applications
• Private Labeling: Your brand on our quality products
• Volume Generation: Versatile fabricating for huge orders
• Technical Integration: Consistent consolidation into your systems

FAQ

Q: What's the minimum order quantity?

A: We accommodate orders from single pieces to large production runs.

Q: How long is the delivery time?

A: Standard products ship within 2-3 weeks. Custom orders typically require 4-6 weeks.

Q: Can you provide samples?

A: Yes, we offer samples for evaluation and testing purposes.

Q: What certifications do you maintain?

A: Our manufacturing partners hold relevant ISO certifications for quality management.

Q: Do you offer technical support?

A: Absolutely. Our engineering team provides comprehensive technical assistance.

Contact Details

Ready to discuss your filtration needs? Our experienced team is here to help you select the perfect solution.

Email: sam.young@sintered-metal.com

Connect with us today to discover how our advanced metal sintered filter plate solutions can enhance your operations and improve your process efficiency.

Shaanxi Filture New Material Co., Ltd. - Your trusted partner for advanced filtration solutions.
