Stainless Steel Cartridge Filter Element - Premium Filtration Solutions

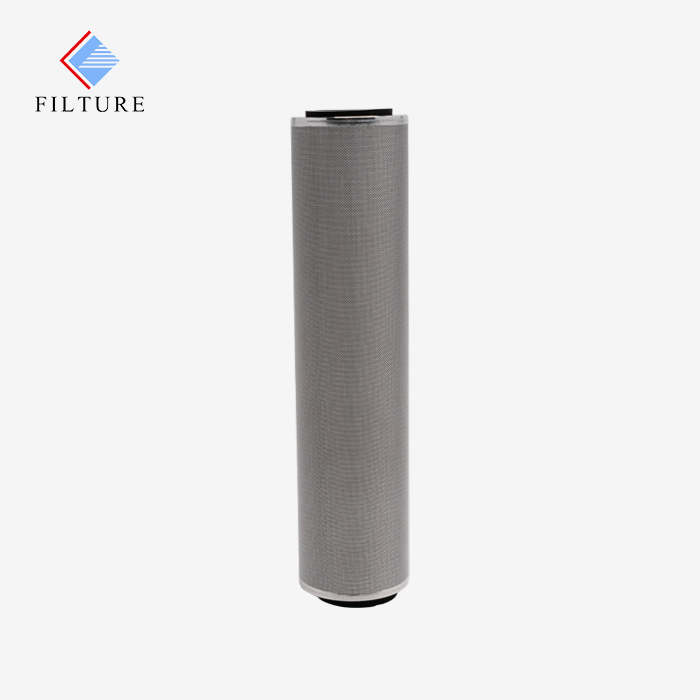

The Sintered Wire Mesh Filter Element is a high-performance filtration solution engineered for demanding industrial environments where structural integrity and long-term reliability are paramount. Utilizing multi-layer vacuum diffusion bonding, this filter element combines superior mechanical strength with a fixed pore structure, ensuring consistent filtration efficiency under high pressure and corrosive operating conditions.

Premium Material Selection

Manufactured from high-grade stainless steel—primarily SS 316L and SS 304—with specialty alloys such as 904L, Hastelloy, and Monel available for extreme environments. These materials provide exceptional resistance to acids, alkalis, and aggressive process media, making the cartridges ideal for:

• Chemical & Petrochemical Processing

• Pharmaceutical & API Manufacturing

• Food & Beverage Filtration

• High-Pressure Hydraulic Systems

Precision Filtration & Permeability

Our micron ratings range from 1μm to 300μm (Nominal). The vacuum sintering process ensures a uniform pore distribution that prevents media migration and pore deformation even under reverse flow. This rigid structure allows for accurate particle separation while maintaining high permeability and low initial pressure drop, significantly enhancing system throughput.

Standard & Custom Configurations

• Dimensions: Standard OD 60mm/64mm; customizable diameters from 30mm up to 350mm.

• Lengths: Standard 10", 20", 30", and 40"; extended lengths up to 60 inches.

• End Connections: Available in DOE (Double Open End) and SOE (Single Open End) configurations, including flat gaskets, 222/226 O-rings, NPT/BSP threads, and custom flanges.

Thermal Resilience & Regeneration

Designed for continuous operation in temperatures ranging from -200°C to 480°C (896°F). The robust sintered construction provides excellent resistance to thermal shock and mechanical stress. To lower the Total Cost of Ownership (TCO), these elements are fully cleanable and reusable via backflushing, ultrasonic cleaning, or chemical sterilization, ensuring a long and cost-effective service life.

Technical Specifications

Product Features

Engineered for High-Pressure Environments Your filtration challenges demand robust solutions. Our filter cartridges maintain consistent performance under high-pressure conditions. The advanced sintered construction provides exceptional mechanical strength, enabling it to withstand the most demanding operating environments.

Reduced Maintenance Costs Simplified maintenance saves both time and operational expenses. These fully regenerable components support various cleaning methods, including backwashing, ultrasonic cleaning, and backpulsing. You can reuse them multiple times without compromising filtration efficiency.

Versatile Fabrication & Customization Flexible fabrication options are available to meet your specific technical needs. We can expertly weld, cut, and stamp these components into various geometries, ensuring seamless integration with your existing filtration systems.

Extended Service Life Superior corrosion and wear resistance significantly extend the service life of each unit. The high-grade 316L stainless steel construction performs reliably even in the most aggressive chemical environments.

Applications

FILTURE sintered mesh technology ensures reliability in critical process environments:

• Polymer Processing: Precision melt filtration for high-quality plastic and fiber manufacturing.

• Chemical Industry: Proven performance in highly corrosive and aggressive chemical environments.

• Pharmaceutical Production: Meeting stringent purity standards and sterile filtration requirements.

• Food & Beverage: Hygienic filtration solutions for safe consumable product processing.

• Hydraulic Systems: Maintaining fluid cleanliness and protecting sensitive machinery components.

• Water Treatment: Effective particulate removal solutions for industrial and municipal systems.

• Natural Gas Processing: Advanced contaminant control for critical energy infrastructure.

• Powder Handling: Expert management of metal powders and fine particulate separation.

​

Energy Industry

​

Hydrogen production equipment

​

Chemical Industry

​

Aerospace Industry

Manufacturing Process

Our stainless steel cartridge filter elements are engineered for superior reliability through a meticulously controlled production cycle:

• Design Engineering: We begin with a tailored design that meets your specific filtration requirements. Every layer configuration is calculated with engineering precision.

• Precision Stacking: Individual wire mesh layers are stacked according to technical specifications. Ultrasonic cleaning then removes surface contaminants, ensuring pristine surfaces for optimal sintering.

• Vacuum Sintering: High-temperature diffusion bonding at 1100°C creates atomic-level connections at all mesh intersection points. This process maintains filtration integrity while significantly increasing mechanical strength, resulting in a monolithic structure with stable precision.

• Final Finishing: Precision machining ensures all components meet exact dimensional tolerances. Rigorous quality control testing validates performance prior to shipment.

Customization Options

Every application presents unique requirements. Our engineering team collaborates with you to develop tailored filtration solutions optimized for your specific process:

• Geometries & Dimensions: Available in circular, rectangular, or complex custom profiles to fit any housing.

• Filtration Ratings: Precision-engineered micron ratings to match your exact separation needs.

• Material Selection: High-performance stainless steel grades and specialty alloys (316L, 304, Hastelloy, Monel).

• End Cap Configurations: Standard industrial fittings or specialized custom connections (SOE/DOE).

• Scalable Lengths: Customized sizing ranging from 10" to 60" to ensure seamless integration with your equipment.

Sintered filter cartridges can be manufactured in a single-open-end design, with the closed bottom constructed from sintered metal mesh.

A custom-designed sintered filter cartridge for specific applications.

A flanged sintered filter cartridge made from fine wire mesh sintering, providing high dirt-holding capacity.

Four sintered filter cartridge designs equipped with different fittings.

Quality Assurance

Our commitment to excellence ensures reliable performance across all filtration applications. We collaborate with certified manufacturing partners who strictly adhere to international standards (such as ISO 9001) throughout the production cycle:

• Comprehensive Batch Testing: Every production batch undergoes stringent validation, including hydrostatic pressure testing, flow rate validation, and precise dimensional inspection.

• Advanced Production Techniques: We employ cutting-edge manufacturing processes to ensure consistent resultsand structural integrity.

• Regular Facility Audits: Continuous monitoring and regular audits of our partner facilities maintain the highest quality benchmarks.

• Full Traceability: Detailed documentation tracking and Material Test Reports (MTRs) provide complete traceability and peace of mind for every shipment.

Packaging and Logistics

We prioritize product integrity through professional packaging and reliable global supply chain management:

• Protective Packaging: We utilize specialized industrial crates and customized internal supports to prevent damage and contamination during transit.

• Precision Labeling: Clear, standardized labeling ensures easy identification and efficient handling at every stage of the journey.

• Global Export Capabilities: Our logistics network provides efficient and reliable delivery to key markets across Europe and North America.

• Real-Time Tracking: Comprehensive tracking information keeps you informed throughout the shipping process, ensuring full transparency from our facility to your doorstep.

Customer Support

Technical expertise is the foundation of your operational success. Our dedicated application engineers provide expert assistance in selecting the optimal filtration solutions tailored to your specific process requirements. We offer comprehensive installation guidance and reliable troubleshooting support whenever needed.

Proactive Communication & Rapid Response We understand that time is critical. Our team ensures prompt serviceand clear communication for every inquiry. Whether you have complex technical questions or require detailed product specifications, our specialists provide accurate, data-driven answers to keep your operations running smoothly.

Why Choose Us

Shaanxi Filture brings proven expertise in advanced filtration materials. Our unwavering focus on innovation and quality has earned the trust of global clients across developed markets, including the United States, United Kingdom, and Denmark.

A Partnership-Driven Approach We believe in a collaborative partnership approach, working closely with you to fully understand your process challenges. These long-term relationships drive our commitment to delivering high-performance solutions that measurably enhance your operational efficiency.

Commitment to Sustainability Our sustainable practices are closely aligned with global environmental objectives. By providing cleanable and reusable filter components, we help our clients reduce industrial waste while maintaining exceptional filtration performance and lowering total costs.

Our Factory

Our Factory

Our Factory

Vacuum Sintering Furnace

Powder Mixer

Ultrasonic Cleaner

OEM Services

Our private label options are designed to support your unique brand requirements. We manufacture high-performance filtration products according to your exact technical specifications and quality standards. Our flexible production volumes are designed to accommodate both high-volume commitments and specialized small-batch orders.

Collaborative R&D & Engineering Strategic design collaboration helps create the ideal custom solutions for your market. Our engineering team works directly with your technical data to ensure every product meets your precise performance criteria. Furthermore, our prototype development phase ensures optimal functionality and validation before proceeding to full-scale production.

FAQ

Q: What cleaning methods work best for these elements?

A: Multiple cleaning options include reverse flow washing, ultrasonic cleaning, and baking. Backwashing is particularly effective for removing surface contaminants.

Q: Can you provide special alloy materials?

A: Yes, we offer specialized materials including Hastelloy C-276, Monel 400, and Inconel 600 for demanding applications.

Q: How do I specify requirements for custom elements?

A: Provide shape, application details, flow rate, pressure drop, operating temperature, and preferred materials. Our engineers will recommend suitable solutions.

Q: What industries benefit most from this technology?

A: Petrochemical, pharmaceutical, food processing, and energy sectors frequently use our products for critical filtration needs.
