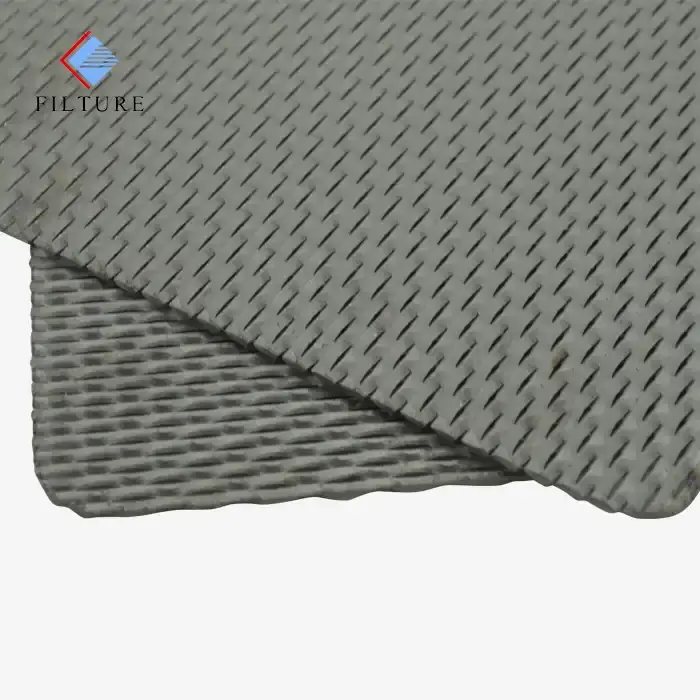

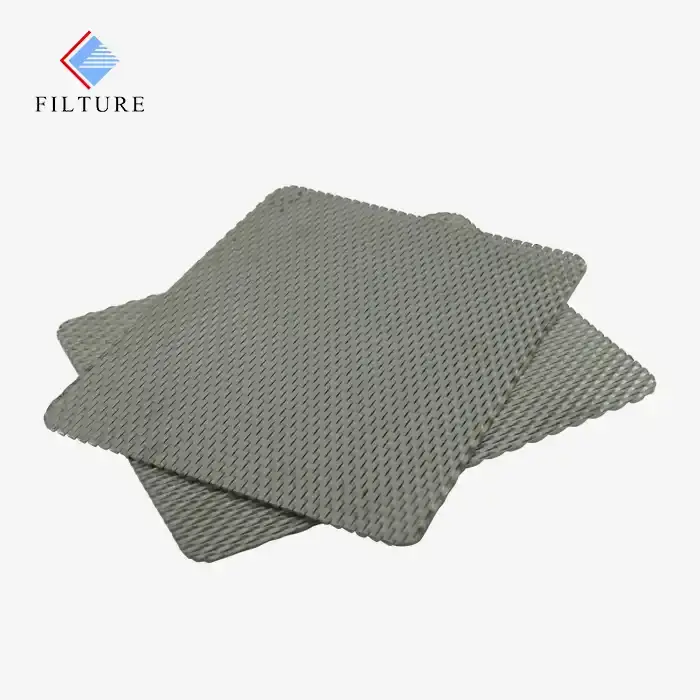

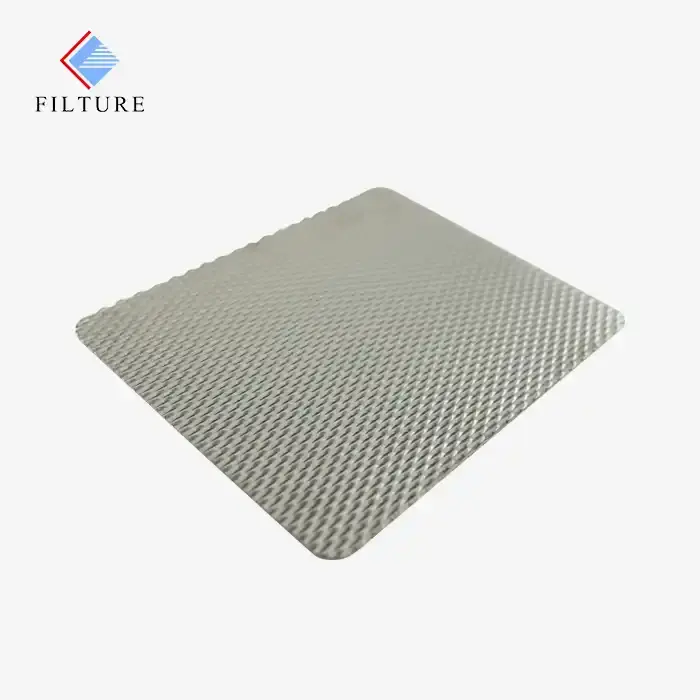

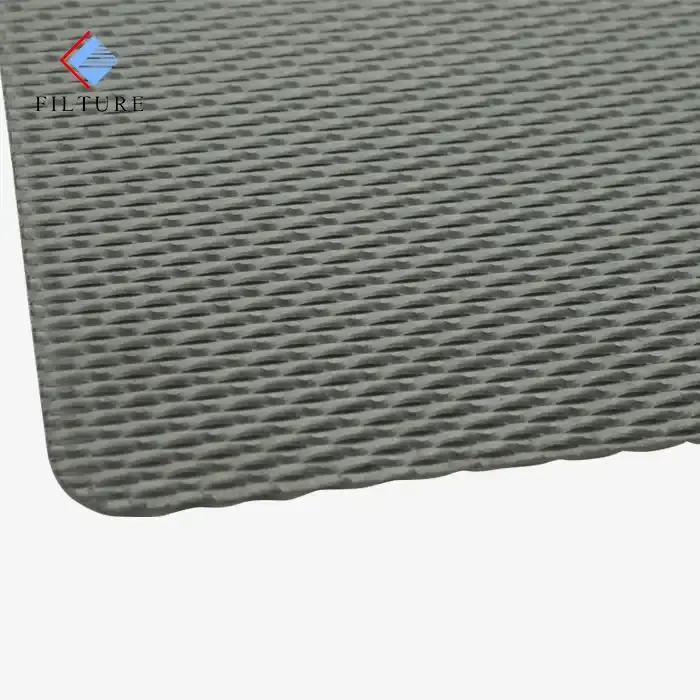

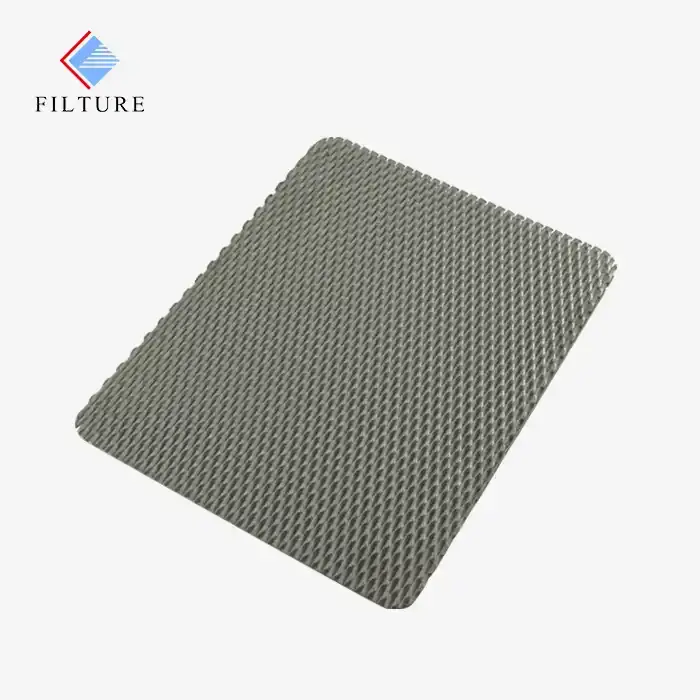

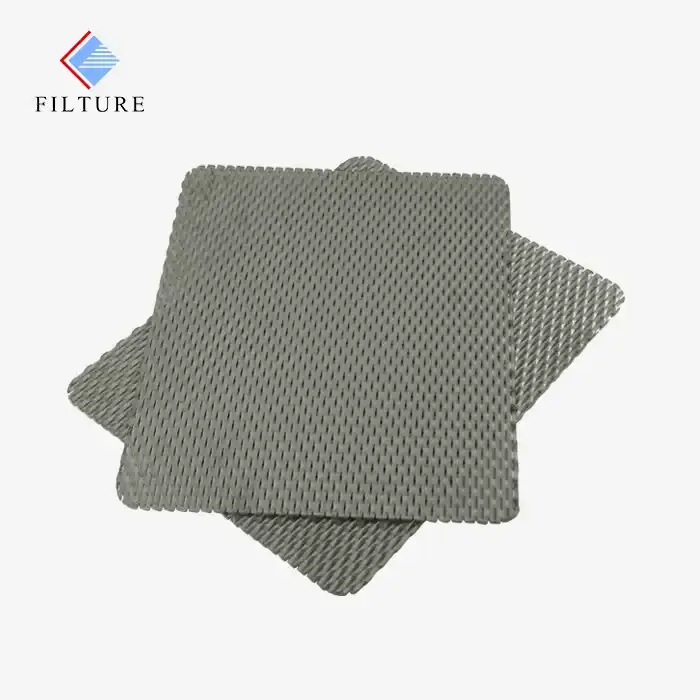

Titanium Mesh for Industrial Applications
Lightweight with high strength and excellent durability.
Outstanding corrosion and heat resistance for harsh environments.
Precise hole patterns for optimized filtration and ventilation.
Good conductivity and stability for electrochemical applications.
Versatile use in aerospace, medical, and industrial fields.
Introduction
Our titanium mesh is a high-performance filtration and structural material engineered for demanding industrial environments. Manufactured from high-purity titanium (Gr1 or Gr2), the mesh combines exceptional mechanical strength with superior chemical and thermal resistance. The material is available in customizable thicknesses ranging from 0.3 mm to 3.0 mm, with widths and lengths up to 1200 mm, and can be supplied in single-layer or multi-layer configurations depending on application requirements. The pore size is precisely controlled, ranging from 0.5 μm to 100 μm, providing uniform filtration efficiency while minimizing flow resistance.
The mesh is produced through a multi-layer stacking process of drawn titanium wires, followed by high-temperature sintering under inert or vacuum conditions. During sintering, the titanium fibers fuse at contact points, forming a three-dimensional metal network with outstanding structural stability. This method ensures excellent dimensional integrity under high pressure, vibration, or thermal cycling, making it suitable for long-term industrial use.
In addition to mechanical robustness, the titanium mesh exhibits exceptional corrosion resistance to acids, alkalis, salts, chlorides, and seawater. It maintains structural stability and filtration performance at temperatures up to 300 °C in air, and its surface can withstand oxidation and chemical attack without degradation. The material’s open pore network allows for efficient fluid and gas flow while providing uniform particle retention, making it ideal for precision filtration and separation processes.
Our titanium mesh is also fully cleanable and reusable. It can undergo ultrasonic cleaning, backflushing, or thermal treatment without compromising its mechanical or chemical properties. These characteristics make it a preferred solution for chemical processing, pharmaceuticals, seawater desalination, hydrogen production systems, fuel cells, and other advanced industrial applications where reliability, purity, and durability are critical.
 |
 |
 |
 |
 |
 |
Technical Specifications
Our Titanium Mesh for Industrial Applications is available in various sizes, pore ranges, and materials to meet the diverse needs of your industry. Below is a summary of key technical specifications:
| Parameter | Specification / Range |
|---|---|
| Material | Pure Titanium (Gr1, Gr2) |
| Structure | Single-layer to Five-layer (customizable) |
| Wire Diameter | 0.2 mm – 0.8 mm (customizable) |
| Thickness | 0.3 mm – 3.0 mm (customizable) |
| Width | ≤ 1200 mm |
| Length | ≤ 1200 mm (can be cut to size) |
| Pore Size | 0.5 μm – 100 μm (customizable) |
| Porosity | 20% – 90% (typical 60%–80%) |
| Filtration Precision | 0.5 μm – 100 μm |
| Maximum Working Temperature | ≤ 300°C (in air) |
| Corrosion Resistance | Resistant to acids, alkalis, salts, chlorides, and seawater |
| Mechanical Strength | High, maintains structure under vibration and pressure |
| Surface Treatment / Connection | Welding, laser welding, flange connection (optional) |
| Cleanability | Reusable, compatible with ultrasonic cleaning, backflushing, thermal treatment |
Key Features
High Porosity: Our titanium mesh boasts exceptional porosity, ensuring efficient filtration without compromising flow.
Durability: Built to withstand harsh environments, titanium mesh resists corrosion, oxidation, and damage caused by high pressures and temperatures.
Easy Cleaning and Reuse: The mesh is simple to clean and can be reused, making it a cost-effective choice for industries with demanding filtration requirements.
Structural Stability: With excellent mechanical properties, titanium mesh maintains its strength and form under extreme stress.
Applications
Titanium Mesh for Industrial Applications is designed to meet the needs of several industries that demand precision and reliability:
Petrochemical Industry: Ideal for filtration of oils, gases, and other chemicals in high-pressure systems.
Pharmaceutical Industry: Ensures purity and contamination-free filtration for drug production.
Food and Beverage: Used for filtering liquids and gases, maintaining product quality and hygiene.
Gas Filtration: Perfect for air filtration systems and industrial gas separation processes.
Aerospace: Utilized in high-performance filtration and separation applications in aircraft engines and systems.
Manufacturing Process of Titanium Mesh
The titanium mesh is produced through a specialized sintering and forming process that ensures high strength and structural stability. This process involves the careful welding and sintering of titanium particles, resulting in a mesh that is both durable and versatile. In some cases, we use a multi-layer structure to further enhance its performance in demanding applications.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
We understand that each application is unique, and our team is committed to providing customized solutions. Our titanium mesh can be tailored to specific sizes, aperture ranges, shapes, and materials. Whether you need a custom pore size or a specific thickness, we have the capabilities to meet your precise requirements.
Quality Assurance
At Shaanxi Filture New Material Co., Ltd., we pride ourselves on our stringent quality control processes. Our Titanium Mesh for Industrial Applications undergoes rigorous testing to meet international standards, including certifications such as ISO and CE. Each product is inspected for consistency, performance, and reliability, ensuring it meets the highest standards before reaching you.
Packaging and Logistics
Our titanium mesh is packaged securely to prevent any damage during shipping. We offer flexible logistics solutions and timely delivery to ensure that your orders arrive safely and on schedule. Our global distribution network ensures that customers from North America to Asia-Pacific can receive their products efficiently.
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
We offer comprehensive technical support throughout the entire purchasing and post-purchase process. From selecting the right titanium mesh to installation and maintenance, our team is ready to assist. Our after-sales service ensures that any issues are resolved quickly, allowing your operations to run smoothly.
Why Choose Us?
With over 20 years of industry experience, [Company Name] is a trusted partner for high-quality filtration solutions. We offer advanced technical capabilities, customizable production options, and strict quality control standards. Our commitment to customer service and timely delivery ensures you receive the best products and support, no matter where you are in the world.
OEM Services
In addition to our standard offerings, we provide OEM services to meet specific customer requirements. Our team works closely with clients to create tailored solutions based on their unique needs, helping them gain a competitive edge in their respective industries.
FAQ
What industries use Titanium Mesh for Industrial Applications? Titanium mesh is used in industries such as aerospace, petrochemical, pharmaceuticals, food processing, and gas filtration.
Can I customize the titanium mesh to my specifications? Yes, we offer customization options, including varying pore sizes, mesh thicknesses, and materials.
What is the maximum temperature and pressure the mesh can handle? Our titanium mesh can withstand temperatures up to 600°C and pressures up to 30 MPa.
