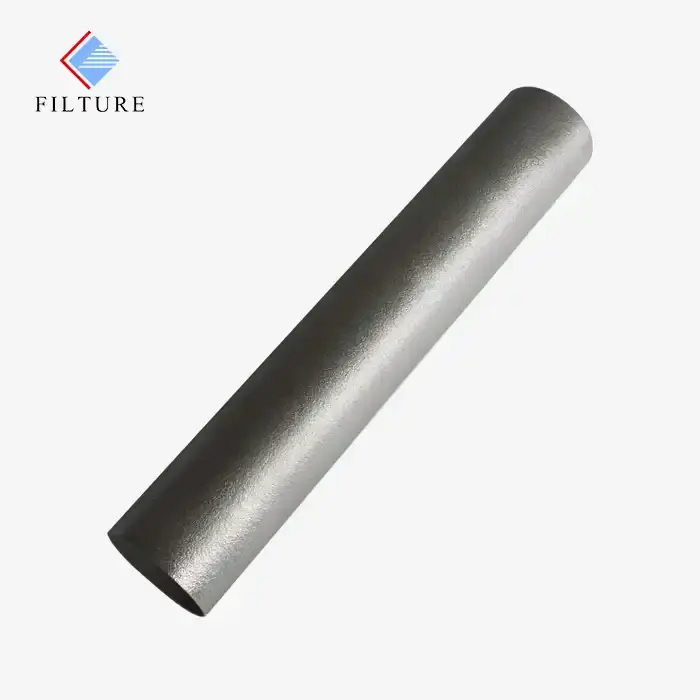

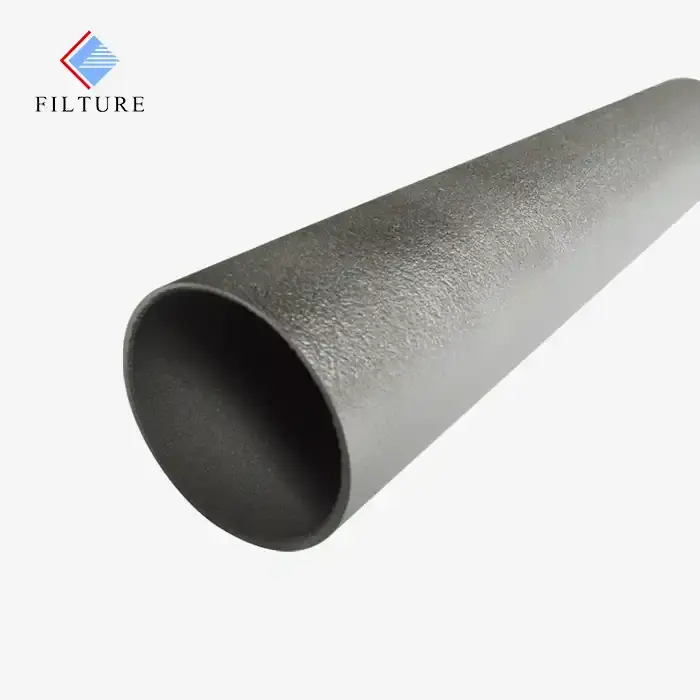

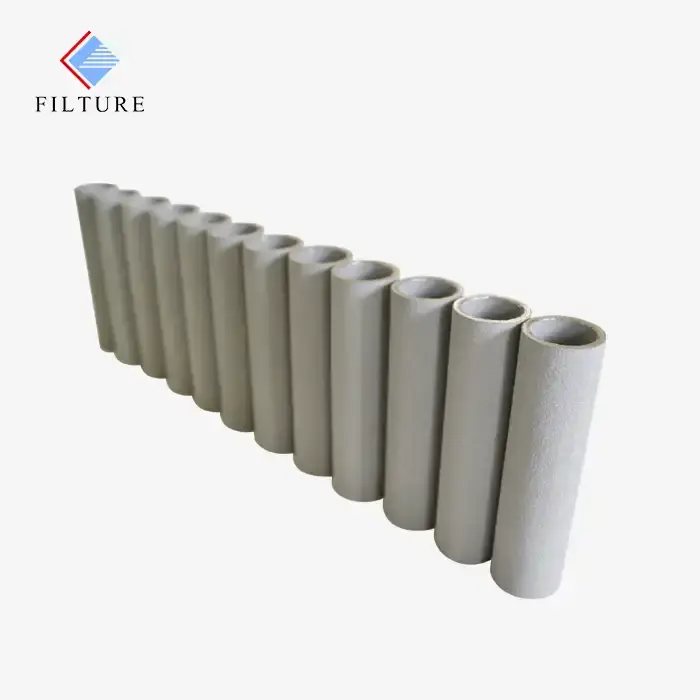

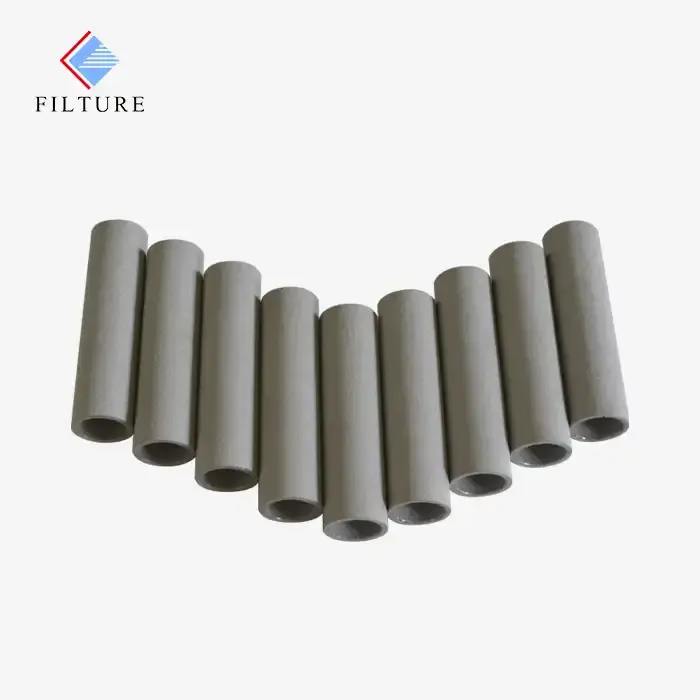

sintered metal tubes
SS316l Sintered Tube
Absolute Rate
Cleanable
Available Sizes:
Outer Diameter: Customized
Inner Diameter: Customized
Micron Rating: 0.22-100um
Product Introduction
Sintered Metal Tubes are precision-engineered filtration components designed for demanding industrial applications requiring high mechanical strength, thermal stability, and micron-level filtration. These tubes are fabricated from high-quality metal powders using cold isostatic pressing, followed by high-temperature vacuum sintering, without the need for binders. This process creates a homogeneous porous structure, allowing precise control over pore size, porosity, and permeability to meet specific filtration requirements. The resulting tubes exhibit excellent dimensional stability and mechanical integrity, making them ideal for continuous operation under extreme conditions.
Constructed from a wide range of corrosion- and temperature-resistant alloys—including stainless steel, nickel, titanium, Monel, Inconel, and Hastelloy B, C, and X—these tubes withstand aggressive chemical environments and temperatures up to 900°C. Pore sizes are customizable from 0.22 μm to 100 μm, allowing for targeted filtration of solid particles, gases, or liquids. The high porosity ensures low pressure drop while maintaining exceptional filtration efficiency and high dirt-holding capacity.
Sintered metal tubes are available in diameters ranging from 10 mm to 200 mm, with lengths tailored to client specifications. A variety of end connections—including DOE, 215, 222, 226, threaded types (NPT, BSP, G, M, R), flanges, rods, and quick-access ports—facilitate integration into diverse filtration systems. Gasket materials such as PTFE, Viton, silicone, EPDM, and NBR provide chemical compatibility and ensure leak-proof operation.
Functionally, these tubes capture particulate matter and contaminants, forming a filter cake on the surface while allowing the purified fluid to flow through. Unlike non-metallic sintered elements, Sintered Metal Tubes can be backwashed or purged using reverse pressure, thanks to their high compressive strength, enabling repeated use and reducing maintenance downtime. Applications include catalyst filtration, fluidized beds, powder and gas processing, pneumatic conveying, beverage and food filtration, sensor protection, PTA mother liquor recovery, and flame- and explosion-prevention systems.
With outstanding mechanical durability, thermal resistance, and chemical compatibility, Sintered Metal Tubes provide long-lasting, high-precision filtration solutions for the most critical industrial processes.
 |
 |
 |
 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SS316L Stainless Steel, Titanium, Nickel, Monel, Inconel, Hastelloy B/C/X |
| Outer Diameter | 10-200mm (Customizable) |
| Inner Diameter | Customizable per requirements |
| Filtration Rating | 0.22-100μm |
| Operating Temperature | Up to 900°C |
| Length | Custom according to client needs |
| Connection Types | M42, M32, M30, M20, DOE, NPT, BSP, Flange |
| Gasket Materials | PTFE, Viton, Silicone, EPDM, NBR |
Product Features
Our progressed filtration tubes convey extraordinary execution through inventive plan. You'll appreciate the prevalent erosion resistance that withstands cruel chemical situations. The fabulous porousness guarantees ideal stream rates whereas keeping up exact division capabilities.
Temperature resistance up to 900°C makes these tubes perfect for high-heat applications. Their mechanical quality and warm conductivity give dependable operation beneath extraordinary conditions. The backwashable plan expands benefit life, whereas shape solidness guarantees steady performance.
Applications
sintered metal tubes exceed expectations over assorted industries:
- Catalyst Filtration: Ensuring profitable catalysts in chemical processes
- Food & Refreshment: Guaranteeing item virtue and safety
- Pharmaceutical: Assembly strict defilement control requirements
- Fuel Cells: Supporting clean vitality technology
- Hydrogen Generation: Empowering productive gas separation
- PTA Generation: Sifting mother alcohol recuperation systems
- Pneumatic Gear: Giving filtration and clamor reduction
- Sensor Assurance: Shielding touchy test equipment
Manufacturing Process
We make accuracy filtration items through progressed powder metallurgy. Metal powders experience cold isostatic squeezing without authoritative specialists, taken after by high-temperature vacuum sintering. This prepare permits exact control over pore measure and distribution.
By selecting fitting powder molecule sizes and optimizing prepare parameters, we accomplish the correct filtration characteristics your application requires. The result is a uniform, solid structure with steady performance.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
Every venture has interesting prerequisites. We offer total customization including:
- Dimensional Details: Any breadth and length combination
- Material Determination: Select from different high-grade alloys
- Connection Sorts: Standard or custom fitting designs
- Pore Estimate: Custom fitted to your filtration needs
- End Cap Arrangements: Numerous fixing alternatives available
Quality Assurance
Our thorough quality control guarantees each item meets universal guidelines. Progressed testing approves filtration proficiency, basic astuteness, and fabric composition. Each group experiences comprehensive assessment some time recently shipping.
Working with certified fabricating accomplices, we keep up reliable quality through standardized forms and persistent checking. Your fulfillment is ensured through our commitment to excellence.
Packaging and Logistics
Products get defensive bundling avoiding defilement amid travel. We arrange worldwide shipping to Europe and North America effectively. Following data keeps you educated all through delivery.
Standard lead times suit most venture plans, with sped up choices accessible for critical prerequisites. Legitimate documentation guarantees smooth traditions clearance.
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
Our specialized group gives comprehensive bolster from detail through establishment. Pre-sales meeting makes a difference select ideal arrangements for your application. Post-delivery back guarantees effective implementation.
Technical documentation, establishment guides, and upkeep suggestions go with each shipment. Coordinate communication channels guarantee provoke reaction to your questions.
Why Choose Us
Shaanxi Filturebrings decades of mastery in progressed filtration materials. Our demonstrated track record serving clients in the Joined together States, Joined together Kingdom, and Denmark illustrates our commitment to quality.
Innovation drives our improvement of cutting-edge arrangements. Maintainability contemplations direct our fabricating forms. Customer-centricity guarantees we convey precisely what you need.
OEM Services
We accomplice with hardware producers requiring coordinates filtration arrangements. Custom building underpins your item improvement from concept through generation. Adaptable fabricating scales with your volume requirements.
Private labeling choices accessible for qualified accomplices. Specialized collaboration guarantees consistent integration with your systems.
FAQ
Q: What's the typical lifespan of these tubes?
A: With proper maintenance and backwashing, product typically last 2-5 years depending on application conditions.
Q: Can these handle aggressive chemicals?
A: Yes, our SS316L and specialty alloy options resist most industrial chemicals and solvents.
Q: What's the minimum order quantity?
A: We accommodate orders from single prototypes to large production runs.
Q: How do I determine the right pore size?
A: Our technical team helps select optimal specifications based on your contamination profile and flow requirements.
Contact Details
Ready to explore how our advanced filtration solutions can enhance your processes? Our experienced team stands ready to discuss your specific requirements and recommend the perfect sintered metal tubes for your application.
Email: sam.young@sintered-metal.com
Contact us nowadays to find how Shaanxi Filture's imaginative materials can lift your venture execution whereas supporting your natural objectives.
