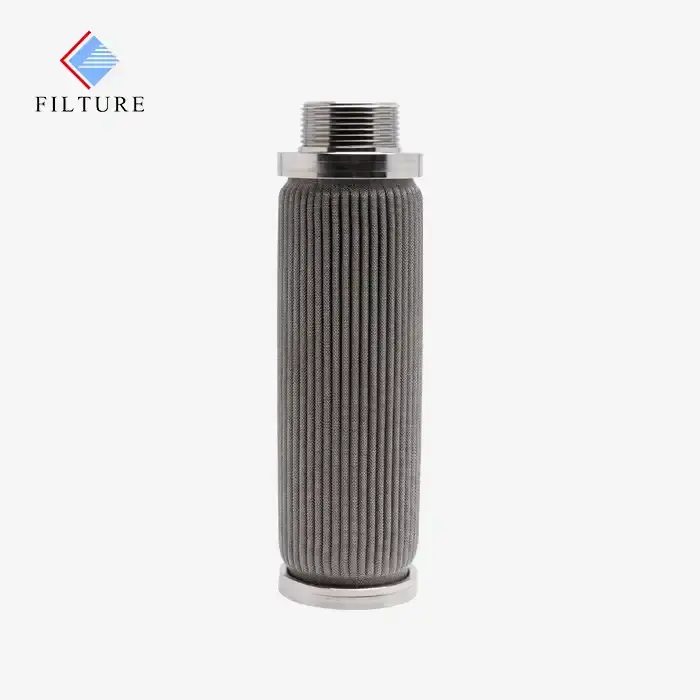

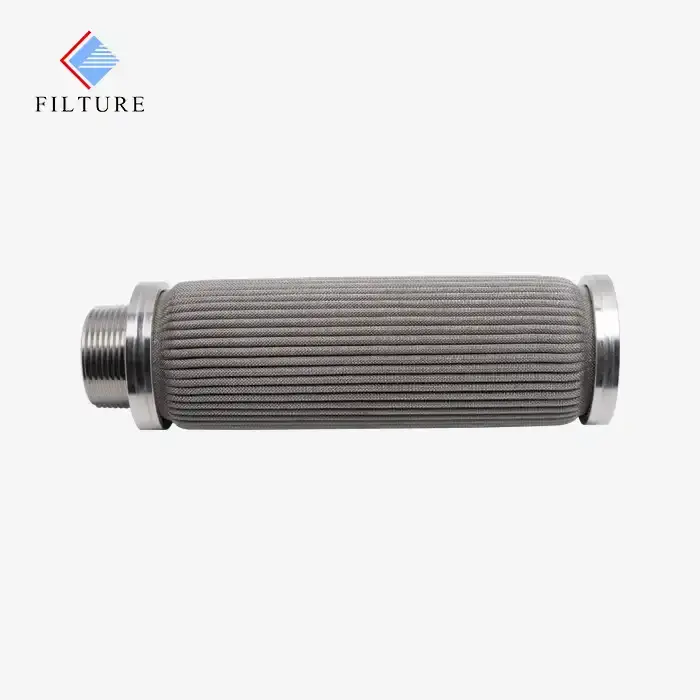

316L Pleated Wire Mesh Cartridge
SS316 Pleated Filter(Wire Mesh)
Absolute Rate
Cleanable
Available Sizes:
Outer Diameter: 60mm(2.36")
Length: 254mm(10")
508mm(20")
762mm(30")
1016mm(40")
Micron Rating: Above 1um
Premium 316L Pleated Wire Mesh Cartridge for Industrial Filtration
Stainless steel filter elements are high-performance filtration components designed to meet the stringent requirements of modern industrial processes operating under extreme pressure, temperature, and corrosive conditions. Manufactured using advanced multilayer sintering technology, these filter elements are constructed from precision plain-weave stainless steel wire mesh or sintered metal structures, ensuring exceptional mechanical strength, dimensional stability, and consistent filtration accuracy.
From a materials and structural design perspective, standard grades include SUS 316L and SUS 304 stainless steel, with optional materials such as 316, 317L, 321, 904L, and titanium available to address aggressive chemical environments or elevated operating temperatures. The multilayer sintered construction forms a rigid, self-supporting matrix with strong interlayer bonding, enabling high resistance to compression, vibration, and thermal shock. This structure supports various configurations, including single open end, double open end, special-shaped designs, compact elements, and flange-mounted assemblies.
In terms of filtration performance, stainless steel filter elements offer precise filtration ratings from 0.2 μm to 300 μm, covering fine to coarse filtration requirements for liquids and gases. The stable pore geometry delivers high permeability with low pressure drop, while the large effective filtration area provides superior dirt-holding capacity. These elements are designed for repeated backflushing and cleaning, significantly extending service life and reducing maintenance and replacement costs.
Regarding dimensions and interface options, the standard outer diameter is 64 mm, with alternative diameters including 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 80 mm, and custom sizes up to 350 mm. The standard inner diameter is 28 mm, and available lengths range from 10″ to 60″. Connection options include double open end, single open end, double O-ring seals, flange connections, and customized fittings for seamless system integration.
 |
 |
 |
 |
 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | 316L Stainless Steel |
| Filtration Rating | Above 1 micron |
| Outer Diameter | 60mm (2.36") |
| Length Options | 254mm (10"), 508mm (20"), 762mm (30"), 1016mm (40") |
| Operating Temperature | -200°C to 600°C |
| Working Pressure | Up to 150 PSI |
| Flow Direction | Outside-in or Inside-out |
| End Configurations | Single or Double Open with O-ring seals |
| Cleaning Method | Backwashable, Ultrasonic cleaning |
Product Features
Enhanced Filtration Range: The creased plan significantly increments surface zone, giving prevalent dirt-holding capacity and expanded benefit life.
Superior Durability: Constructed from premium 316L stainless steel, offering excellent resistance to corrosive chemicals and oxidizing environments.
Cleanable and Reusable: Unlike disposable alternatives, these cartridges can be cleaned and reused multiple times, reducing operational costs.
Precision Engineering: Each contact point between wire strands is sintered, creating a robust structure with consistent pore distribution.
Flexible Sealing Options: Available with single or double O-ring configurations to ensure leak-proof installation in various housing systems.
Applications
Chemical Processing: Ideal for filtering aggressive chemicals and solvents in pharmaceutical and chemical manufacturing.
Food and Beverage Industry: Perfect for maintaining product purity in food processing and beverage production lines.
Automotive Manufacturing: Essential for hydraulic fluid filtration and automotive component manufacturing processes.
Mining Operations: Effective for process water treatment and mineral processing applications.
Textile Industry: Suitable for dye filtration and textile manufacturing processes requiring high-quality filtration.
Manufacturing Process
Our fabricating prepare starts with premium 316L stainless steel wire work choice. The work experiences exact sintering at controlled temperatures to bond contact focuses forever. We at that point frame the creased structure utilizing specialized gear that keeps up uniform crease dispersing. Each 316L Pleated Wire Mesh Cartridge gets quality review some time recently last get together with fixing components.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
We get it that each application has special necessities. Our group offers comprehensive customization administrations including:
- Custom distance across and length specifications
- Alternative conclusion cap configurations
- Special micron appraisals for particular applications
- Modified crease designs for upgraded performance
- Custom stamping and recognizable proof systems
Quality Assurance
Every cartridge experiences comprehensive testing counting bubble point testing, stream rate confirmation, and auxiliary astuteness evaluation. Our quality administration framework guarantees steady execution over all generation clumps. We keep up nitty gritty traceability records for total quality documentation.
Packaging and Logistics
ach item is exclusively wrapped in defensive plastic film some time recently situation in export-grade wooden boxes. Our bundling ensures against defilement and physical harm amid transportation. We arrange with solid coordinations accomplices to guarantee opportune conveyance to European and North American markets.
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
Our specialized group gives comprehensive bolster all through your filtration travel. From starting determination meeting to progressing upkeep direction, we're committed to your victory. We offer application-specific proposals and investigating help to optimize your filtration performance.
Why Choose Us
Industry Ability: Over a long time of encounter serving requesting mechanical applications over worldwide markets.
Quality Center: Thorough quality control frameworks guarantee reliable item execution and reliability.
Global Reach: Demonstrated track record serving clients in the Joined together States, Joined together Kingdom, Denmark, and beyond.
Innovation Administration: Nonstop venture in inquire about and improvement drives our mechanical advancement.
OEM Services
We accomplice with hardware producers to give private name filtration arrangements. Our OEM administrations incorporate custom bundling, specialized checking, and altered details to meet your correct prerequisites. We keep up privacy understandings and give devoted bolster for OEM partnerships.
FAQ
Q: How often should cartridges be cleaned?
A: Cleaning frequency depends on application conditions. Monitor pressure differential to determine optimal cleaning intervals.
Q: What cleaning methods are recommended?
A: Ultrasonic cleaning, high-temperature baking, or appropriate solvent cleaning depending on contamination type.
Q: Can cartridges handle high-temperature applications?
A: Yes, our product operates effectively at temperatures up to 600°C.
Q: What's the typical service life?
A: With proper maintenance, cartridges can provide years of reliable service depending on application conditions.
Contact Details
Ready to enhance your 316L Pleated Wire Mesh Cartridge performance? Our technical experts are standing by to discuss your specific requirements and provide customized solutions.
Email: sam.young@sintered-metal.com
Contact us today to discover how our advanced filtration technology can optimize your processes and reduce operational costs.
