ss sintered filter
SS316 Porous Filter
Absolute Rate :Cleanable
Available Sizes:
Outer Diameter: 60mm(2.36")
Length:
254mm(10")
508mm(20")
762mm(30")
1016mm(40")
Micron Rating: 0.22-100um
Product Introduction

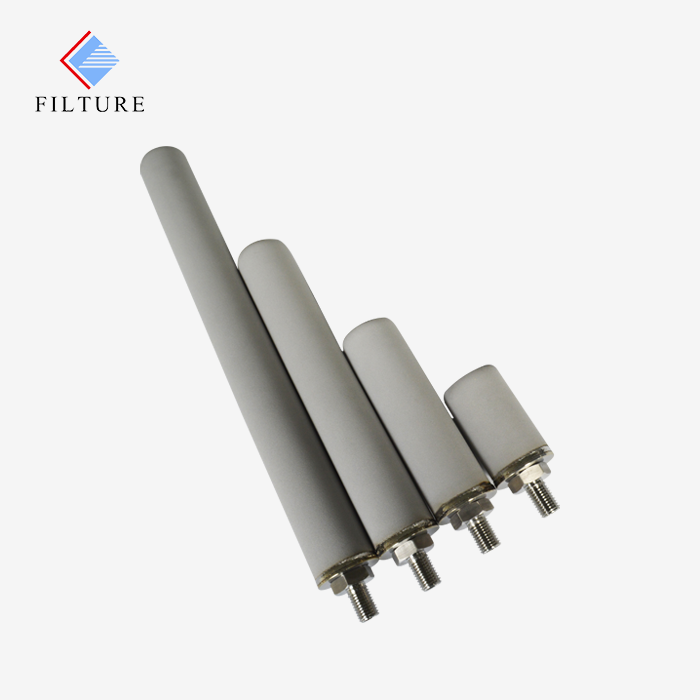

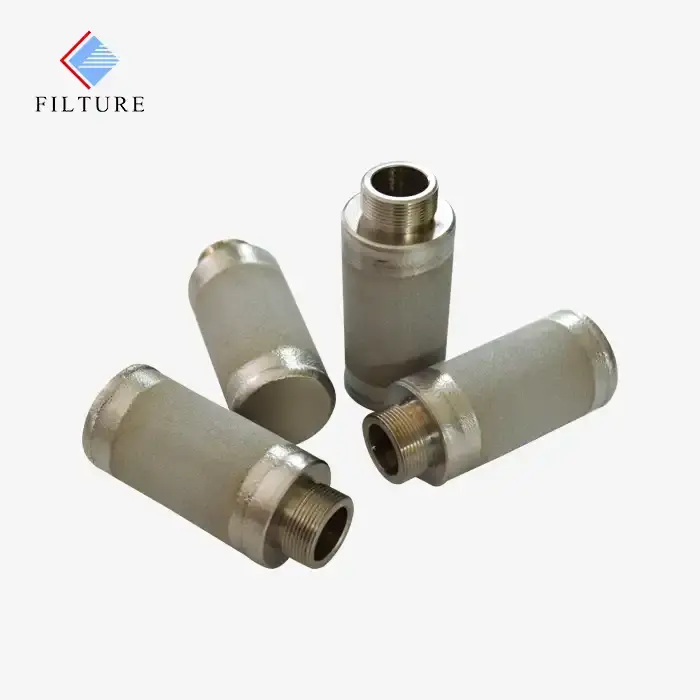

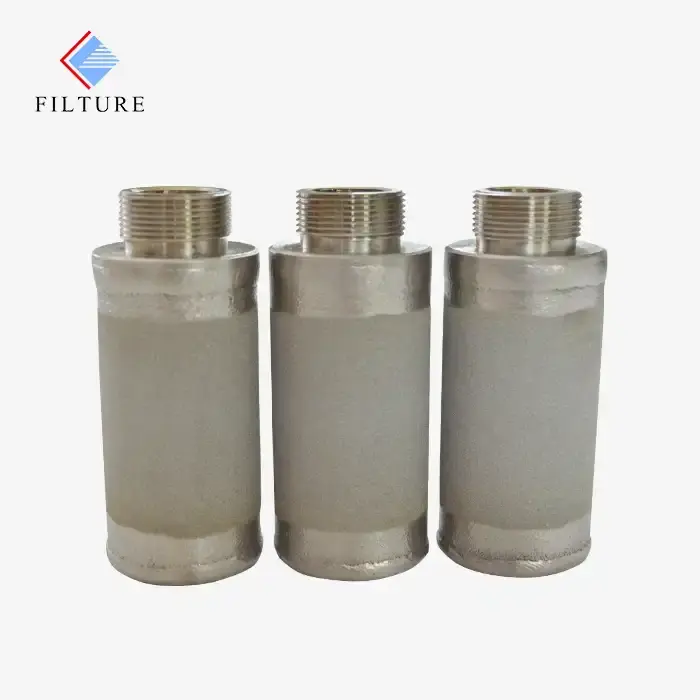

The SS Sintered Filter is a precision-engineered filtration element constructed from high-quality stainless steel materials, including SUS 316L, SUS 304, 317L, 904L, and other specialized alloys. It is manufactured using multi-layered woven wire mesh or stainless steel fiber felt, which are carefully overlapped and sintered together in a vacuum furnace. The cylindrical body is then rolled and seam-welded to ensure exceptional roundness and structural flatness. This multi-layer sintering process results in a rigid, durable structure that provides superior mechanical strength and overcomes the weaknesses of conventional wire mesh, including low tensile strength and unstable pore geometry.
Designed to meet a broad range of industrial filtration requirements, the SS Sintered Filter offers filtration precision from 0.2 µm to 300 µm, ensuring highly reliable removal of particles from liquids and gases. Standard outer diameters are 64 mm, with alternative options ranging from 30 mm to 350 mm to accommodate different system requirements. The standard inner diameter is 28 mm, while lengths are available in 10 in (254 mm), 20 in (508 mm), 30 in (762 mm), 40 in (1016 mm), and 60 in (1524 mm). Connection types include single open end, double open end, and double O-ring designs, allowing flexible integration into existing filtration systems.
The filter is engineered to operate under extreme conditions, with a temperature range from -200 °C to 1000 °C and excellent corrosion resistance in aggressive chemical environments. Its interlaced mesh structure ensures high permeability, stable pore geometry, and significant dirt-holding capacity, minimizing pressure drop and maximizing service life. Additionally, the filter supports backwashing, enabling easy cleaning and repeated use, which further extends operational longevity.
Ideal for use in aerospace, chemical processing, petroleum, metallurgical, and food & beverage applications, the SS Sintered Filter is particularly effective for hydraulic fluids, polymer filtration, gas sampling, and fluidized bed gas distribution. Its robust design and precise filtration performance make it a trusted choice for industries demanding reliable, long-lasting, and high-performance filtration solutions.
 |
 |
 |
 |
 |
 |
 |
 |
Technical Specifications
| Parameter | Specification / Range |
|---|---|
| Material | SUS 316L, SUS 304, 316, 304, 317L, 904L, 321, Titanium, other alloys available |
| Filtration Precision | 0.2 µm – 300 µm |
| Standard Outer Diameter | 64 mm |
| Other Outer Diameters | 30 mm, 40 mm, 50 mm, 60 mm, 64 mm, 70 mm, 80 mm, 350 mm |
| Standard Inner Diameter | 28 mm |
| Length Options | 10 in (254 mm), 20 in (508 mm), 30 in (762 mm), 40 in (1016 mm), 60 in (1524 mm) |
| Connection Types | Single open end, Double open end, Double O-ring |
| Temperature Range | -200 °C to 1000 °C |
| Features | High mechanical strength, corrosion-resistant, stable pore shape, high dirt capacity, easy backwash |
| Applications | Aerospace, chemical processing, petroleum, metallurgical, food & beverage, hydraulic fluid, polymer filtration, gas sampling, fluidized bed gas distribution |
Product Features
Our sintered metal channel cartridges offer extraordinary advantages:
- Superior Mechanical Quality: Vacuum sintering prepare makes remarkable auxiliary integrity
- Excellent Erosion Resistance: Stainless steel development guarantees long-lasting durability
- Stable Pore Structure: Steady filtration execution all through benefit life
- High Earth Holding Capacity: Expanded operation between cleanings
- Easy Backwashing: Reversible stream cleaning amplifies channel life significantly
- Wide Temperature Extend: Performs dependably in extraordinary warm conditions
Applications
Our ss sintered filter solutions excel across diverse industries:
Aerospace & Defense: Basic water powered and fuel framework filtration
Pharmaceutical: Sterile handling and API purification
Food & Refreshment: Item clarification and prepare water treatment
Chemical Handling: Polymer filtration and catalyst recovery
Oil & Gas: Pressure driven liquid and oil purification
Environmental: Water treatment and gas cleaning applications
Manufacturing Process
We utilize progressed vacuum sintering innovation to create our channels. Numerous layers of precision-woven wire work are carefully amassed and sintered in controlled climate heaters. This handle makes a solid structure with uniform porosity whereas keeping up amazing porousness. The round and hollow shape is accomplished through exact rolling and crease welding, guaranteeing culminate roundness and auxiliary integrity.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
Every application is unique. We offer comprehensive customization including:
- Custom breadths and lengths
- Specialized conclusion cap configurations
- Flanged associations for particular equipment
- Alternative materials for extraordinary environments
- Tailored micron ratings
- Integrated mounting hardware
Quality Assurance
Our quality administration framework guarantees each channel meets exacting execution benchmarks. Each group experiences thorough testing counting pore estimate investigation, stream rate confirmation, and weight testing. We keep up full traceability all through generation and give comprehensive test certificates with each shipment.
Packaging and Logistics
Products are carefully bundled in defensive materials to avoid harm amid travel. Standard bundling incorporates plastic sleeves for littler units and wooden cartons for bigger orders. We facilitate with solid coordinations accomplices to guarantee convenient conveyance to Europe and North America. Express shipping choices are accessible for pressing requirements.
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
Our specialized group gives comprehensive bolster from starting meeting through continuous benefit. We help with channel choice, framework integration direction, and investigating. Standard support plans and substitution updates offer assistance optimize your filtration framework performance.
Why Choose Us
Shaanxi Filture brings years of expertise in advanced filtration materials. Our commitment to innovation and quality has earned trust from clients across developed markets including the United States, United Kingdom, and Denmark. We combine technical excellence with responsive customer service to deliver solutions that exceed expectations.
OEM Services
We accomplice with hardware producers to create coordinates filtration arrangements. Our designing group collaborates on custom plans that meet particular execution prerequisites whereas optimizing fetched and manufacturability. Volume generation capabilities bolster your scaling needs.
FAQ
Q: How often should I replace my ss sintered filter?
A: Replacement frequency depends on application conditions. Regular pressure monitoring helps determine optimal change intervals.
Q: Can these filters be cleaned and reused?
A: Yes, our sintered filters support multiple backwashing cycles, significantly extending service life.
Q: What's the maximum operating pressure?
A: Pressure ratings vary by configuration. Contact us for specific application requirements.
Q: Do you provide installation support?
A: We offer technical guidance and can recommend certified installation partners in your region.
Contact Details
Ready to enhance your filtration system with our premium ss sintered filter arrangements? Our specialized pros are standing by to examine your particular necessities and suggest the ideal arrangement for your application.
Email: sam.young@sintered-metal.com
Connect with us nowadays to find how our progressed filtration innovation can move forward your handle productivity and item quality. We see forward to building a fruitful association with your organization.
