oem sintered metal felt

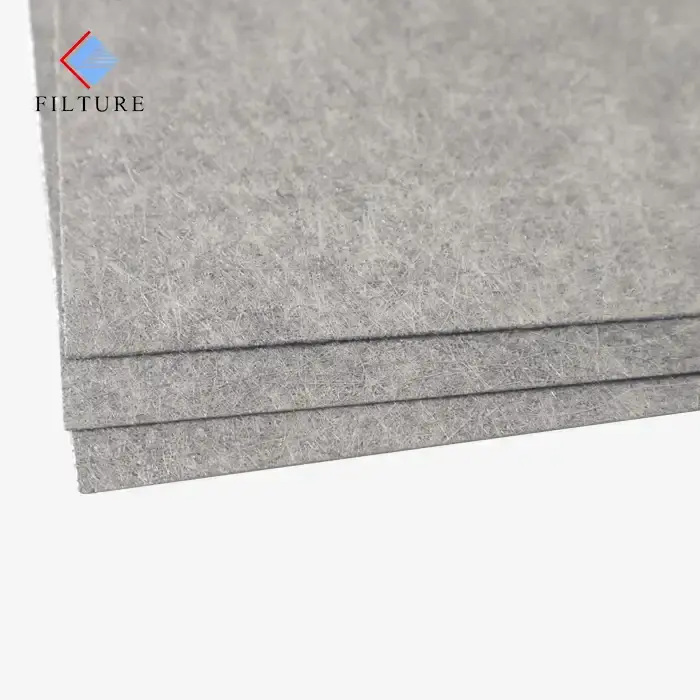

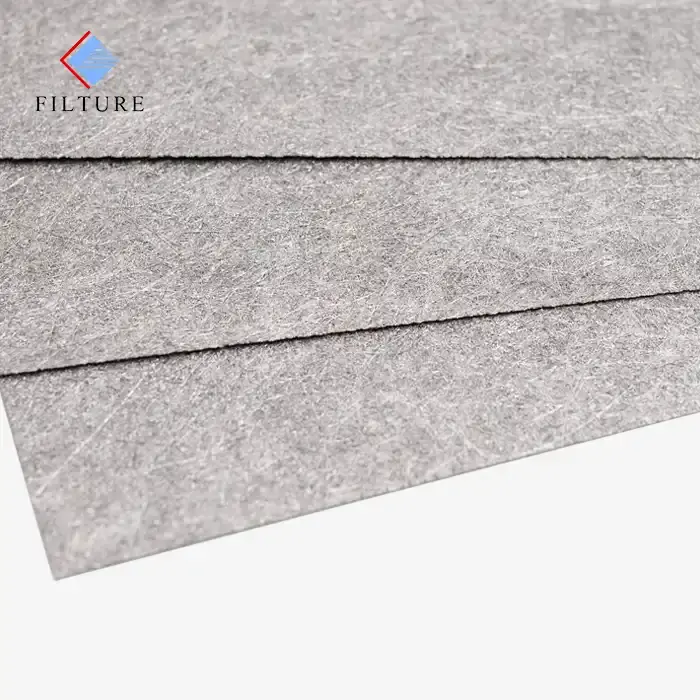

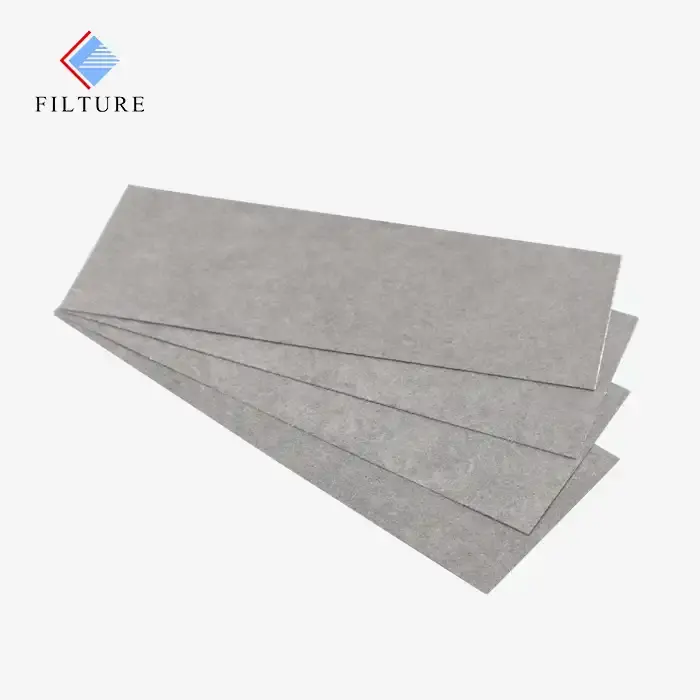

Product standard specifications of titanium fiber felt:
Thickness: 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.2 - 5.0mm;
Porosity: optional within 20% - 90%;
Maximum external dimension: 1200 x 1200mm, and specific dimensions can be cut according to customers' requirements.
Product Introduction
OEM Sintered Metal Felt is a precision-engineered material designed for high-performance filtration, structural reinforcement, and energy applications. Manufactured from premium metal fibers such as stainless steel (316L, 304) or titanium (GR1), the fibers are drawn to controlled diameters ranging from 10 μm to 100 μm and stacked using specialized layering techniques to achieve uniform density and mechanical stability. The layered fibers are then bonded through high-temperature vacuum sintering, producing a three-dimensional network where each fiber junction is fully fused, delivering excellent compressive strength, tensile stability, and dimensional consistency under rigorous industrial conditions.
This felt offers fully customizable thicknesses from 0.25 mm to 5 mm, with maximum sheet dimensions of 1200 × 1200 mm, and shapes including circular, polygonal, ring-shaped, or bespoke geometries to suit specific OEM requirements. Its porosity can be tailored between 20% and 90%, allowing precise control over gas and liquid permeability, filtration efficiency, and particle retention. The high specific surface area of the sintered network enhances adsorption, facilitating efficient removal of contaminants, particulates, or catalytic materials in complex industrial processes.
OEM Sintered Metal Felt demonstrates outstanding thermal stability and corrosion resistance, capable of operating in temperatures exceeding 500°C depending on the material, while maintaining chemical resistance in aggressive environments. Its combination of electrical conductivity, gas diffusion, water drainage, and structural support makes it ideal for energy systems such as proton exchange membrane fuel cells (PEMFCs), hydrogen generation equipment, and industrial filtration systems. Furthermore, the felt is reusable, easy to clean, and integrates seamlessly into modular assemblies, reducing maintenance costs and improving operational longevity.
Designed for OEM customization, this sintered metal felt provides flexibility in material selection, dimensional precision, and functional performance. Its reliability, durability, and adaptability ensure optimal performance across diverse industrial applications, making it a preferred choice for manufacturers seeking advanced filtration and high-strength materials tailored to exact specifications.
 |
 |
 |
 |
 |
 |
 |
 |
Technical Specifications
| Parameter | Standard Options | Custom Range |
|---|---|---|
| Thickness | 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm | 0.25-5.0mm |
| Porosity | 60%-80% (Standard) | 20%-90% |
| Maximum Size | 1200 × 1200mm | Custom cut available |
| Materials | Grade 1 Titanium, 316L Stainless Steel | Various grades |
| Fiber Diameter | Micron-level precision | Customer specified |
| Operating Temperature | Up to 600°C | Material dependent |
Product Features
Your applications request unwavering quality. Our sintered metal felt delivers:
- Superior Erosion Resistance: Withstands forceful chemical environments
- High Temperature Steadiness: Keeps up execution in extraordinary conditions
- Uniform Pore Structure: Guarantees reliable filtration efficiency
- Excellent Strength-to-Weight Proportion: Lightweight however solid construction
- Large Surface Region: Improved contaminant capture capacity
- Reusable Plan: Cost-effective with launderable, long-lasting performance
Applications
Our materials exceed expectations in basic applications where execution cannot be compromised:
Fuel Cell Technology
- Proton Trade Film Fuel Cells (PEMFC)
- Gas dissemination layers for ideal gas distribution
- Water administration in fuel cell stacks
Hydrogen Production
- Electrolysis equipment components
- High-pressure filtration systems
- Catalyst support structures
Industrial Processes
- Chemical processing filtration
- Aerospace component manufacturing
- Environmental protection systems
Manufacturing Process
We utilize progressed sintering strategies to make your custom felt. Micron-diameter filaments are carefully layered utilizing specialized stacking strategies. The get together experiences high-temperature vacuum sintering beneath controlled weight. Amid this handle, fiber intersection focuses intertwine together, shaping a strong three-dimensional organize structure. This strategy guarantees steady quality and execution over each batch.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
Your extend details drive our fabricating approach. We offer:
- Custom thickness from 0.25mm to 5.0mm
- Tailored porosity levels (20%-90%)
- Various shapes: circular, polygonal, ring, circle configurations
- Multiple fabric grades for particular applications
- Surface medications for upgraded performance
- Specialized edge wrapping up options
Quality Assurance
Every piece of oem sintered metal felt experiences thorough testing. Our quality control frameworks guarantee reliable execution and compliance with worldwide benchmarks. We work with certified fabricating accomplices to ensure solid conveyance plans and item consistency.
Packaging and Logistics
We ensure your venture with cautious bundling planned for universal shipping. Our coordinations organize guarantees opportune conveyance to Europe and North America. Each shipment incorporates nitty gritty details and taking care of instructions.
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
Our specialized group gives comprehensive back all through your extend lifecycle. From starting determination improvement to post-delivery help, we guarantee your victory. Specialized documentation, establishment direction, and investigating back are promptly available.
Why Choose Us
Shaanxi Filture brings a long time of specialized encounter to your extend. We get it the requesting necessities of present day mechanical applications. Our commitment to development and quality has earned believe from clients over created markets counting the Joined together States, Joined together Kingdom, and Denmark.
OEM Services
We specialize in making custom arrangements that meet your correct prerequisites. Our OEM administrations incorporate plan interview, model improvement, and full-scale generation. Whether you require standard determinations or interesting setups, our group conveys arrangements that surpass expectations.
FAQ
Q: What is the typical lead time for custom orders?
A: Lead times vary based on specifications and quantity. Contact us for specific project timelines.
Q: Can you provide samples for testing?
A: Yes, we offer sample programs to help you evaluate our product for your specific application.
Q: What certifications do your products meet?
A: Our products comply with relevant international standards. Specific certifications vary by application and material grade.
Q: Do you offer technical support for design optimization?
A: Absolutely. Our engineering team provides technical consultation to optimize your filtration system design.
