sintered metal felt
Product standard specifications of titanium fiber felt:
Thickness: 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.2 - 5.0mm;
Porosity: optional within 20% - 90%;
Maximum external dimension: 1200 x 1200mm, and specific dimensions can be cut according to customers' requirements.
Product Introduction

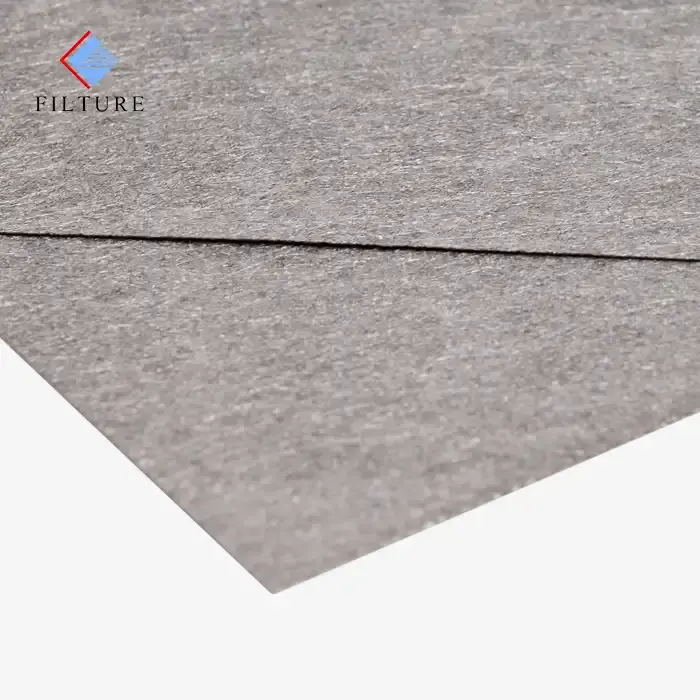

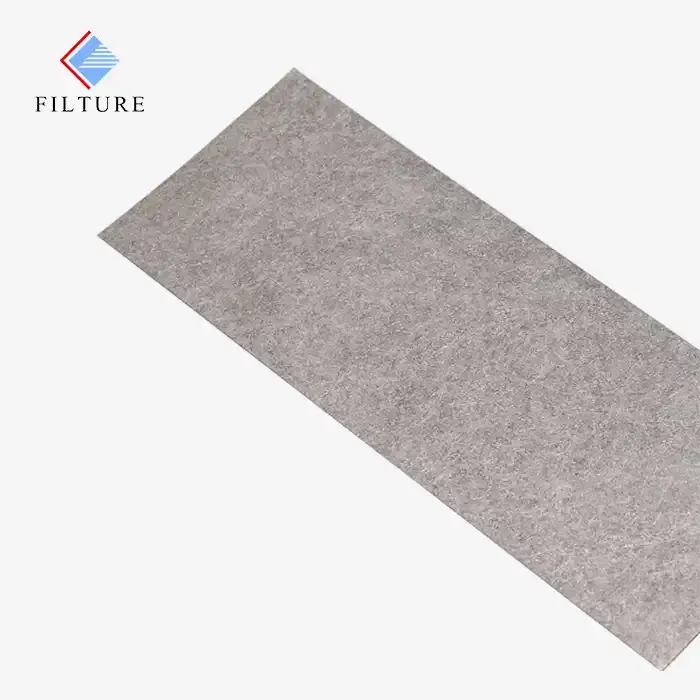

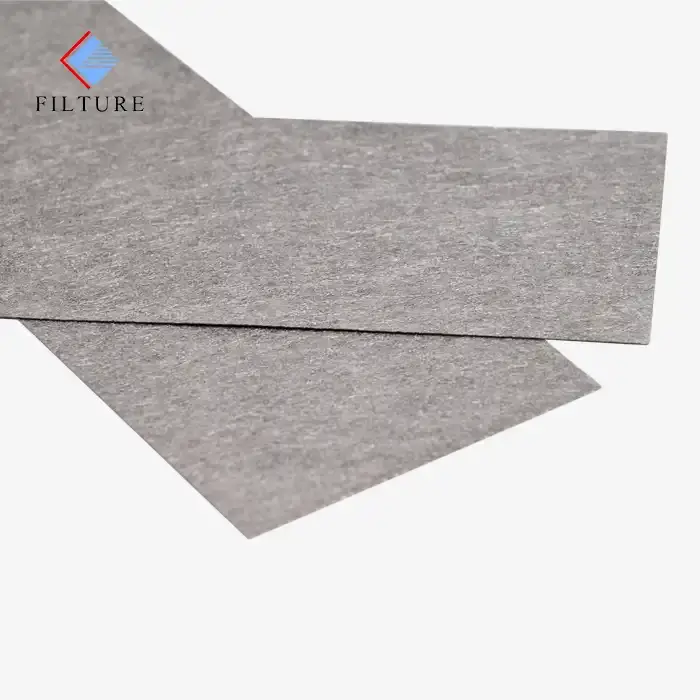

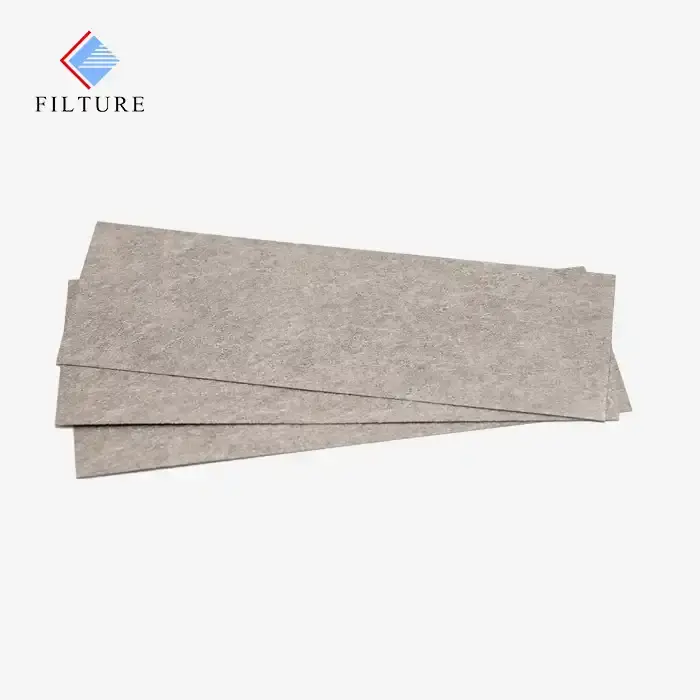

Sintered Metal Felt is a high-precision, durable material engineered for demanding filtration, structural, and energy applications. It is manufactured from premium metal fibers such as stainless steel (316L, 304) and titanium (GR1), drawn to diameters typically between 10 μm and 100 μm. The fibers are layered using controlled stacking techniques and then bonded through high-temperature vacuum sintering, forming a three-dimensional network structure. This sintering process ensures each fiber junction is fully fused, providing exceptional mechanical strength, dimensional stability, and resistance to deformation under both compressive and tensile stress.
The felt offers customizable thicknesses ranging from 0.25 mm to 5 mm and maximum sheet dimensions of 1200 × 1200 mm. Shapes can be tailored to specific requirements, including circular, polygonal, ring-shaped, or other bespoke geometries. Porosity is adjustable between 20% and 90%, allowing precise control over fluid or gas permeability and filtration efficiency. The interconnected fiber network creates a high specific surface area, optimizing adsorption and filtration performance for particles, liquids, or catalysts in complex industrial systems.
Sintered Metal Felt exhibits outstanding thermal stability and corrosion resistance, operating reliably at temperatures above 500°C depending on the material. Its multi-functional design allows simultaneous gas or liquid diffusion, drainage, electrical conductivity, and structural support, making it particularly suitable for fuel cells, hydrogen generation systems, chemical filtration, and industrial machinery. Furthermore, the material is reusable, easy to clean, and integrates seamlessly into modular assemblies, reducing operational costs and maintenance requirements.
Engineered for precision, durability, and adaptability, Sintered Metal Felt delivers consistent, long-term performance in extreme conditions. Its combination of high porosity, structural strength, and chemical resilience makes it a trusted solution for OEM and industrial applications where filtration accuracy, mechanical reliability, and thermal resistance are critical.
 |
 |
 |
 |
 |
 |
 |
 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Thickness | 0.25mm - 5.0mm (customizable) |
| Porosity Range | 20% - 90% (adjustable) |
| Maximum Dimensions | 1200mm × 1200mm |
| Material Options | Grade 1 Titanium, Stainless Steel |
| Fiber Diameter | Micrometer-level precision |
| Operating Temperature | Up to 600°C (varies by material) |
| Shape Options | Rectangular, circular, polygonal, disc-shaped |
Product Features
Your applications request materials that perform beneath weight. Our product delivers:
- Superior Erosion Resistance: Withstands cruel chemical environments
- High Temperature Soundness: Keeps up judgment at extraordinary temperatures
- Exceptional Porosity Control: Exact pore structure for ideal filtration
- Outstanding Mechanical Quality: Stands up to distortion and fatigue
- Excellent Conductivity: Perfect for electrochemical applications
- Reusable Plan: Launderable and long-lasting for cost-effective operation
Applications
Transform your mechanical forms with our flexible filtration solutions:
Fuel Cell Innovation: Gas dissemination layers in PEMFC frameworks for upgraded execution and water management
Hydrogen Generation: Basic components in electrolysis gear and gas filtration systems
Chemical Handling: Catalyst underpins and response media for requesting environments
Aerospace Industry: Lightweight filtration arrangements for mission-critical applications
Environmental Assurance: Discuss and fluid filtration frameworks for contamination control
Manufacturing Process
We create each sintered metal felt through our advanced manufacturing process:
- Fiber Planning: Precision-drawn titanium or stainless steel fibers
- Layering: Vital arrangement utilizing specialized stacking methods
- Sintering: High-temperature vacuum sintering for ideal bonding
- Quality Testing: Comprehensive assessment for execution validation
- Custom Wrapping up: Cutting and forming to your correct specifications
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Customization Options
Every extend is one of a kind. We offer total customization to meet your particular needs:
- Thickness Varieties: From 0.25mm to 5.0mm
- Custom Shapes: Circles, polygons, plates, or complex geometries
- Porosity Alteration: Custom-made from 20% to 90%
- Surface Medications: Hydrophobic or hydrophilic alterations available
- Special Measurements: Past standard sizes upon request
Quality Assurance
Your victory depends on reliable quality. Our thorough quality control ensures:
- International Guidelines Compliance: Assembly worldwide industry requirements
- Advanced Testing Conventions: Comprehensive execution verification
- Certified Fabricating Accomplices: Trusted organize of quality facilities
- Batch Traceability: Total documentation for each generation run
Packaging and Logistics
Receive your orders safely and on schedule:
- Protective Bundling: Specialized holders anticipate harm amid transport
- Global Shipping: Dependable conveyance to Europe, North America, and worldwide
- Flexible Amounts: From models to large-scale generation volumes
- Express Choices: Need shipping accessible for critical requirements
 |
 |
 |
 |
 |
 |
 |
 |
Customer Support
Our master group underpins you all through your extend lifecycle:
- Technical Interview: Application-specific direction and recommendations
- Design Help: Offer assistance optimizing your filtration framework design
- After-Sales Benefit: Progressing back for ideal performance
- Quick Reaction: Fast communication for pressing inquiries
Why Choose Us
Partner with Shaanxi Filture for proven excellence:
- Industry Skill: A long time of encounter in progressed filtration materials
- Innovation Center: Ceaseless R&D for cutting-edge solutions
- Global Reach: Effective executions over created markets
- Customer-Centric Approach: Custom fitted arrangements for your special needs
- Sustainability Commitment: Ecologically capable manufacturing
OEM Services
Accelerate your product development with our comprehensive OEM capabilities:
- Custom Plan Improvement: From concept to production
- Private Labeling: Your brand on our premium products
- Technical Back: Building help all through development
- Scalable Generation: From tests to high-volume manufacturing
FAQ
Q: What makes sintered metal felt different from traditional filters?
A: Our product offers superior durability, precise pore control, and excellent temperature resistance compared to conventional filtration materials.
Q: Can you produce non-standard sizes?
A: Yes, we customize dimensions, shapes, and specifications to match your exact requirements.
Q: What's the typical lead time for custom orders?
A: Lead times vary based on complexity and quantity. Contact us for specific project timelines.
Q: Do you provide technical support for application design?
A: Absolutely. Our engineers assist with material selection and application optimization.
Contact Details
Ready to explore how our premium filtration solutions can enhance your sintered metal felt applications? Our technical team is standing by to discuss your specific requirements and provide expert recommendations.
Email: sam.young@sintered-metal.com
Connect with us today to discover the Shaanxi Filture advantage for your next project.
